Science & Technology

The science and technology used to build NANUK UGVs consists of the following:
Icon Image

Materials

Almost 100% aluminum: Rugged and durable with multiple design options.

Icon Image

Base

Configurable drive navigation, power, and sensors. Modular bases and lifts.

Icon Image

Options

Mounting plates, platform lifts, arms, armor, bulletproof targets.

Icon Image

Computers

Basic control or high-performance systems.

Icon Image

Radio

RC unit lets you create/start/pause/end missions + receive data/video/status.

Icon Image

Motors

High torque motors for quick, powerful movement and skid steering.

Icon Image

Power

Sealed Lead Acid (SLA), Lithium Polymer (LiPo), or Lithium Iron Phosphate (LiFePO4) battery technologies; other power options available.

Icon Image

Sensors

Multiple navigation sensors: 2D/3D LiDARs, IMUs, GPS/GNSS, 2D/3D cameras, wheel odometers, programmable lightbars and payloads, radio controllers.

Icon Image

Software

Robot Operating System (ROS), Arduino, Open Source Computer Vision Library (OpenCV), and custom Java on Linux. Updates are plug-and-play.

Icon Image

Network

Self-contained secure wireless network for secure autonomously operations, optional long-range wireless up to 1 kilometer in range.

Icon Image

Wheels and Tracks

Four or Six Wheeled Rubberized Tires or Maneurverable Tracks.

Icon Image

Other Applications

Can act as a SensorHub and connect to  Compusult’s Web Enterprise Suite IoT platform. Learn More.


Standard Model Specifications

NANUK Models are also customizable.

Model 100 Model 200 Model 300
Description Four-wheeled All Wheel Drive (AWD) platform designed to maneuver through rugged terrain. Six-wheeled AWD platform for extreme terrain; nearly unstoppable in rugged environments. Tracked UGV designed to be maneuverable through unpredictable terrain. Small yet powerful: will operate in confined spaces but will get the job done.
Base dimensions 25” x 24” x 12” 39” x 30” x 18” 12.5” x 16” x 5”
Base weight 60 lbs. 200 lbs. 10 lbs.
Top speed 6 mph 6 mph 3 mph
Payload capacity 100 lbs. 200 lbs. 15 lbs.
Operating time 8 hours 8 hours 8 hours
Recharge time 3 hours 4-5 hours 3 hours

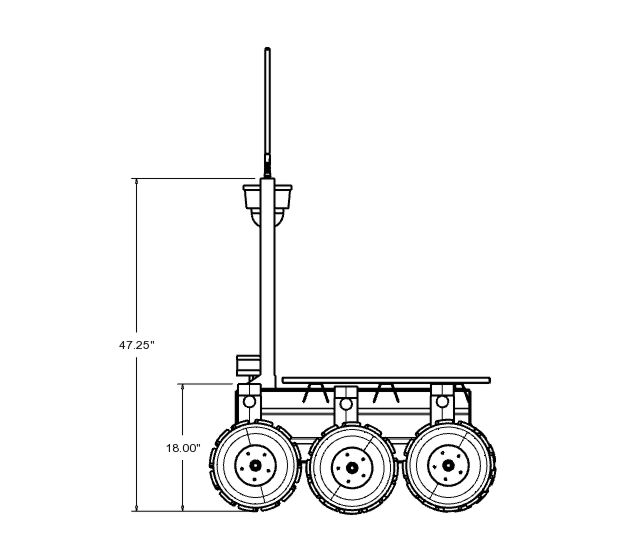

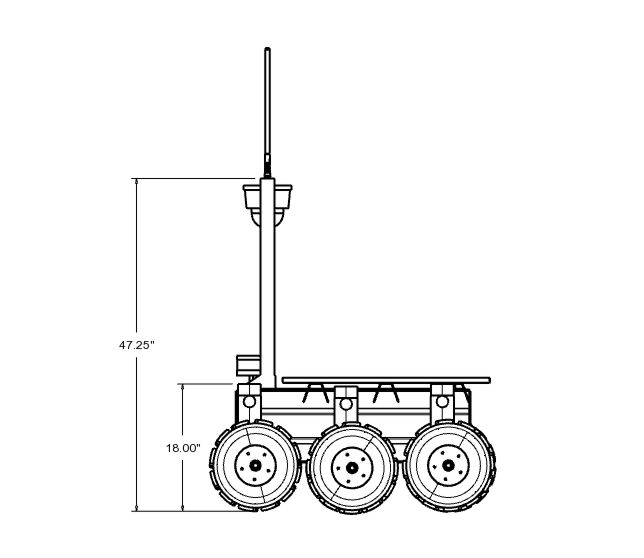

Model 200 Side View

Side View

This is the side view of the standard Model 200, measurements are 18 inches heigh for the base unit or 47.25 inches heigh together with the tower.

All models are highly customizable.

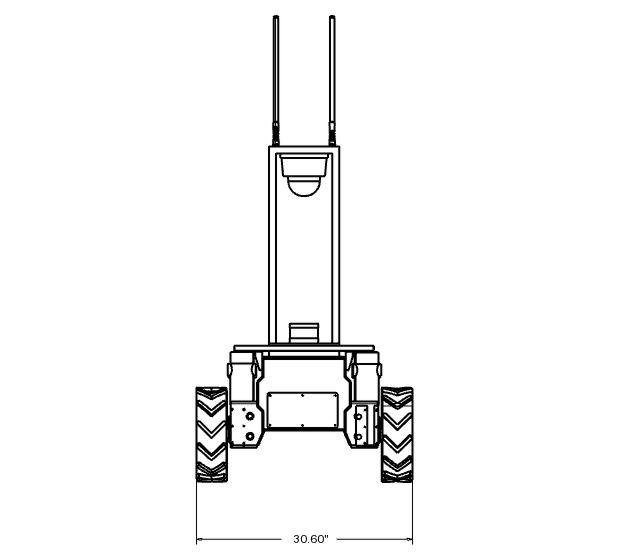

Model 200 End View

End View

This is the end view of the standard Model 200, the width is 30.60 inches wheel to wheel.

​​​​​​​All models are highly customizable.

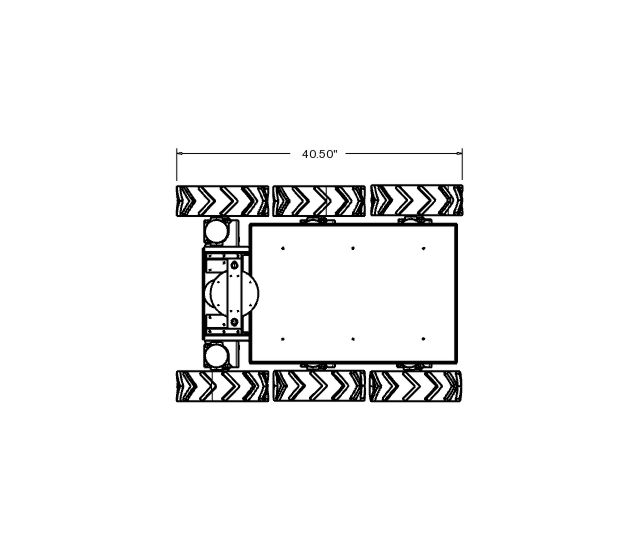

Model 200 Top View

Top View

This is the top view of the standard Model 200, the width is 40.50 inches front wheel to rear wheel.
​​​​​​​
All models are highly customizable.
